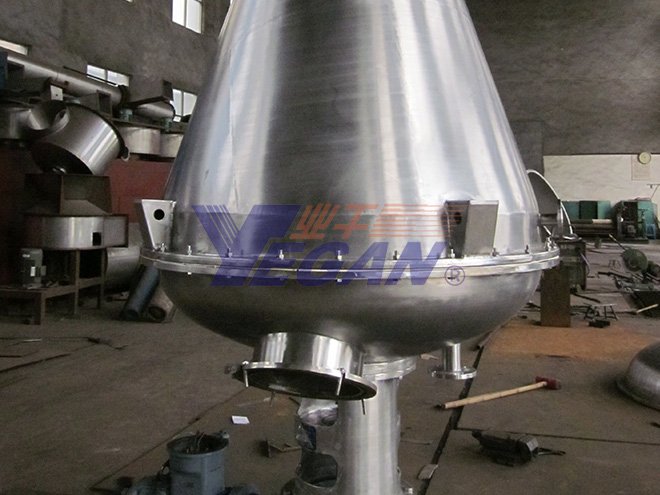

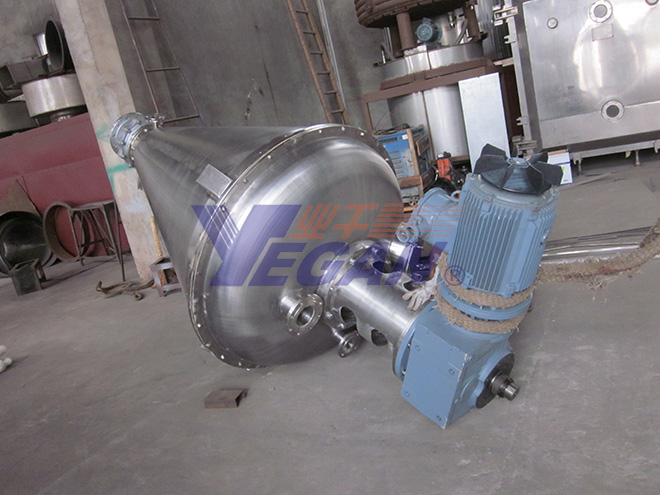

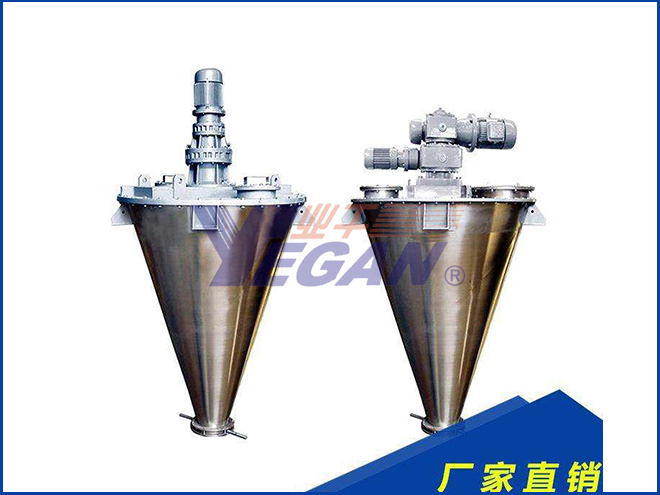

RDS锥形螺带混合机
RDS Taper/cone shape ribbon blender
适用工况条件
锥形螺带混合机通常应用于粉料、颗粒状物料、浆料或粘稠体的混合、搅拌、可配备喷液喷淋系统，可按用户要求设计成真空状态、带压状态、加热或冷却等工艺条件，满足各种工艺状况下物料的混合、搅拌。
Applications:
Tpaer ribbon blender widely used for powder, partilce raw material, it can also suit for mixing and stirring slurry, viscous raw material, it can equip the spraying system, it can be designed the vacuum state, under the pressure state, heating or cooling requirements as you requested. It meets requirements for mixing and stirring different kind raw material.

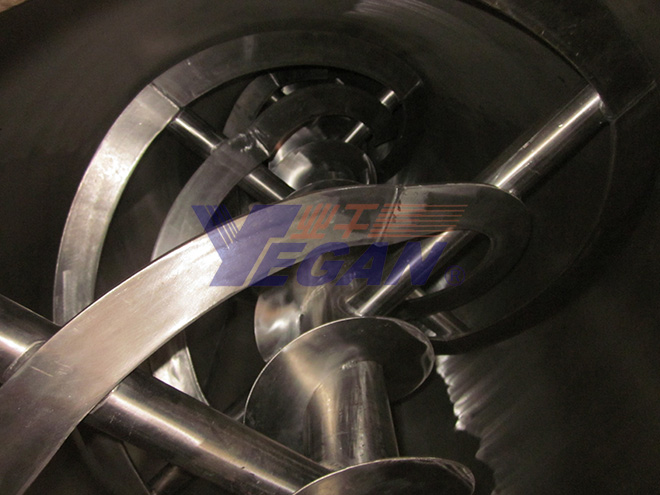

主要功能

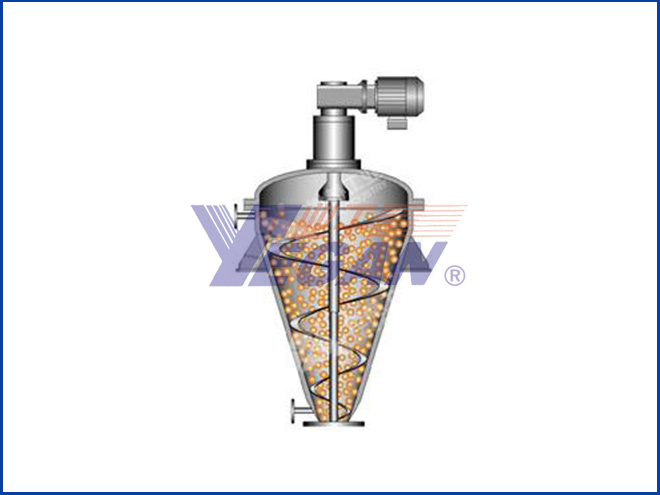

◆强力混合作用
使靠近容器壁的物料向上运动而中心处的物料向下运动
◆柔和但完全地对可流动的物料进行混合,大量的物料可在短时间内实
现混合
◆可以达到高标准的混合均匀
◆几乎可以将所有的物料排干净
Main functions:
. Intensive mixing
It can make the raw material to do upward movement which near to the vessel, while the middle raw material do the downward movement.
Soft mixing
It can mixing the flow raw material softt and completely, for large quantity raw material, it can be mixed in short time.
It reach high requirements on mixing uniformity
It can emptying all kind raw material almostly.
特点：
◆悬臂轴结构，轴承端不与物料接触
◆搅拌桨与容器壁之间间隙非常小，以防止物料粘结
◆标准化的搅拌驱动箱以确保运行稳定、维修成本低
◆针对每个应用采用合适轴密封结构，轴密封离开产品安装，确保
经过试用和测试的CLARE MIXERS 企业标准搅拌器密封得到很好
的使用
◆符合GMP设备设计－－特殊几何形状的O形圈，高质量的设备表面
处理和消除死角。
Features:
Cantilever shaft structure, bearing end without contact with the raw material.
There is a lttle space between the agitator blade and vessel to prevent sticking and blocking.
Standard agitator drive box can ensure operation stable and low cost of maintentance.
It adopts the suitable shaft seal structure for each one, when the shaft seal left the package, it can ensure the standard agitator sealing is good after testing the clear mixers.
It meets the GMP requirements-special type-geometrical shape-O type circle, high qualtiy for the surface treatment and clean the dead corner.
可选菜单：
◆可设计成抽真空或带压操作
◆可配备冷热夹层
◆上盖按用户要求设计成封头结构形式
◆密封装置：标准型填料密封，骨架密封，机械密封
◆出料阀：球阀、蝶阀，闸板阀可供选择
◆可配置喷液装置
◆增加切碎装置，能切碎任何尺寸的聚合物，以满足工艺要求
Option menu:
. It can be designed the vacuum or pressure operation
. It can equip the cooling or heating jacket.
. Upper cover can be designed head structure as customer request.
. Discharge valve: ball valve, butterfly valve, gate valve etc
. It can equip the spraying device
. It can add chopped device, it can cut up any size of the polymer, it meets the technolgical requirements.
可以满足工艺条件：
1、满足GMP和FDA标准
2、满足真空、正压、或高温操作工况，当真空或压力达到一定程度时并可以保压一定时间
3、可以真空上料，避免一些轻质细粉人工投料时产生粉尘飞扬
4、可以在物料混合过程中进行加热或冷却工艺
5、配置CIP在线旋转清洗喷淋球，用于设备清洗
Technological conditions
1. It satisfied with the GMP and FDA requirements
2. It meets the vacuum, positive pressure or high temperature condition, when under the vaccum or pressure condition, it can pressurize
3. it can vacuum feeding and advoid some fine powder in the air.
4. It can be heated pr cooled during the process of mixing.
It can equip the CIP Online rotary cleaning spray ball which used for cleaning up the device.
5.
|
|
|
型号 |
全容积
m3 |
工作容积
m3 |
功率
KW |
支座中心距
mm |
支座孔径
mm |
外形尺寸D*H
mm |
|
RDS-0.05 |
0.05 |
0.03 |
0.75~1.1 |
620 |
24 |
680*1600 |
|
RDS-0.1 |
0.1 |
0.06 |
1.5~2.2 |
740 |
24 |
820*1750 |
|
RDS-0.3 |
0.3 |
0.18 |
2.2~3 |
940 |
24 |
1040*1900 |
|
RDS-0.5 |
0.5 |
0.3 |
3~4 |
1080 |
30 |
1180*2600 |
|
RDS-0.8 |
0.8 |
0.5 |
4~5.5 |
1180 |
30 |
1280*2900 |
|
RDS-1 |
1 |
0.6 |
5.5~7.5 |
1335 |
30 |
1470*3000 |
|
RDS-1.6 |
1.6 |
1 |
7.5~11 |
1620 |
30 |
1760*3500 |
|
RDS-2 |
2 |
1.2 |
7.5~11 |
1720 |
30 |
1860*3800 |
|
RDS-3 |
3 |
1.8 |
11~15 |
1910 |
30 |
2050*4200 |
|
RDS-4 |
4 |
2.5 |
15~18.5 |
2110 |
30 |
2250*4350 |
|
RDS-5 |
5 |
3 |
18.5~22 |
2210 |
30 |
2350*4600 |
|
|
Type |
Total volume m3 |
Working volume m3 |
Power(KW) |
Support center distance(mm)
|
Bearing aperture(mm)
|
Overall size(D*H)mm |
|
RDS-0.5 |
0.5 |
0.3 |
3-4 |
1080 |
30 |
1180*2600 |
|
RDS-1 |
1 |
0.6 |
5.5-7.5 |
1335 |
30 |
1470*3000 |
|
RDS-2 |
2 |
1.2 |
7.5-11 |
1720 |
30 |
1860*3800 |
|
RDS-3 |
3 |
1.8 |
11-15 |
1910 |
30 |
2050*4200 |
|
RDS-4 |
2.5 |
15-18.5 |
15-18.5 |
2110 |
30 |
2250*4350 |
|
RDS-5 |
53 |
3 |
18.5-22 |
2110 |
30 |
2350*4600 |
